H71型對夾升降式止回閥
產(chǎn)品名稱：H71型對夾升降式止回閥

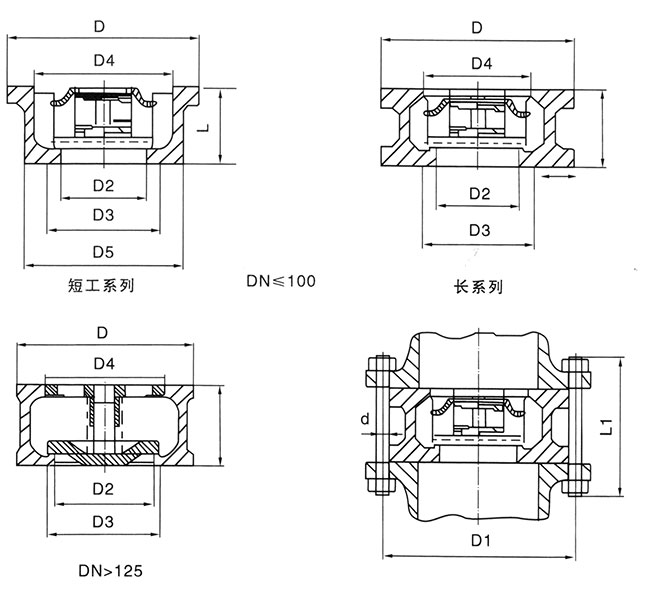

主要外形尺寸和連接尺寸The main dimensions and connection dimensions
公稱壓力 PN Mpa | 公稱通道 DN mm | 尺寸（mm） | 重量 （Kg） | 配管法蘭（供參考） | ||||||||
L | D | D2 | D3 | D4 | D5 | 螺栓孔中心圓直徑D1 | 螺栓數(shù)量 | 螺栓直徑d | 螺栓長度L1 | |||
PN1.0MPa PN1.6MPa | 15 | 16 | 52 | 15 | 24 | 31 | 40 | 0.12 | 65 | 4 | M12 | 75 |
20 | 19 | 62 | 19 | 30 | 40 | 50 | 0.24 | 75 | 4 | M12 | 90 | |
25 | 22 | 72 | 24 | 36 | 47 | 58 | 0.34 | 85 | 4 | M12 | 90 | |
32 | 28 | 83 | 31 | 46 | 56 | 68 | 0.53 | 100 | 4 | M16 | 100 | |
40 | 31.5 | 93 | 39 | 55 | 66 | 78 | 0.8 | 110 | 4 | M16 | 105 | |
50 | 40 | 108 | 48 | 65 | 78 | 90 | 1.2 | 125 | 8 | M16 | 125 | |
65 | 46 | 128 | 62 | 80 | 95 | 110 | 1.8 | 145 | 8 | M16 | 130 | |
80 | 50 | 142 | 76 | 96 | 110 | 128 | 2.2 | 160 | 8 | M16 | 135 | |
100 | 60 | 162 | 95 | 115 | 135 | 150 | 3.4 | 180 | 8 | M16 | 150 | |
125 | 90 | 192 | 110 | 125 | 132 | - | 9 | 210 | 8 | M16 | 180 | |
150 | 106 | 218 | 127 | 150 | 158 | - | 14 | 240 | 8 | M20 | 210 | |
PN1.0MPa | 200 | 140 | 273 | 165 | 200 | 208 | - | 24 | 295 | 12 | M20 | 240 |
PN1.6MPa | 200 | 140 | 273 | 165 | 200 | 208 | - | 24 | 295 | 4 | M20 | 240 |
PN2.5MPa | 15 | 16 | 52 | 15 | 24 | 31 | 40 | 0.12 | 65 | 4 | M12 | 80 |
20 | 19 | 62 | 19 | 30 | 40 | 50 | 0.24 | 75 | 4 | M12 | 90 | |
25 | 22 | 72 | 24 | 36 | 47 | 58 | 0.34 | 85 | 4 | M12 | 90 | |
32 | 28 | 83 | 31 | 46 | 56 | 68 | 0.53 | 100 | 4 | M16 | 110 | |
40 | 31.5 | 93 | 39 | 55 | 66 | 78 | 0.8 | 110 | 4 | M16 | 115 | |
50 | 40 | 108 | 48 | 65 | 78 | 90 | 1.2 | 128 | 4 | M16 | 125 | |
65 | 46 | 128 | 62 | 80 | 95 | 110 | 1.8 | 145 | 8 | M16 | 135 | |
80 | 50 | 142 | 76 | 96 | 110 | 158 | 2.2 | 160 | 8 | M16 | 145 | |
100 | 60 | 168 | 95 | 115 | 135 | 150 | 3.8 | 190 | 8 | M20 | 160 | |
125 | 90 | 194 | 110 | 125 | 132 | - | 9.2 | 220 | 8 | M24 | 205 | |
150 | 106 | 224 | 127 | 150 | 158 | - | 15 | 250 | 8 | M24 | 225 | |
200 | 140 | 284 | 165 | 200 | 208 | - | 26 | 310 | 12 | M24 | 260 | |
